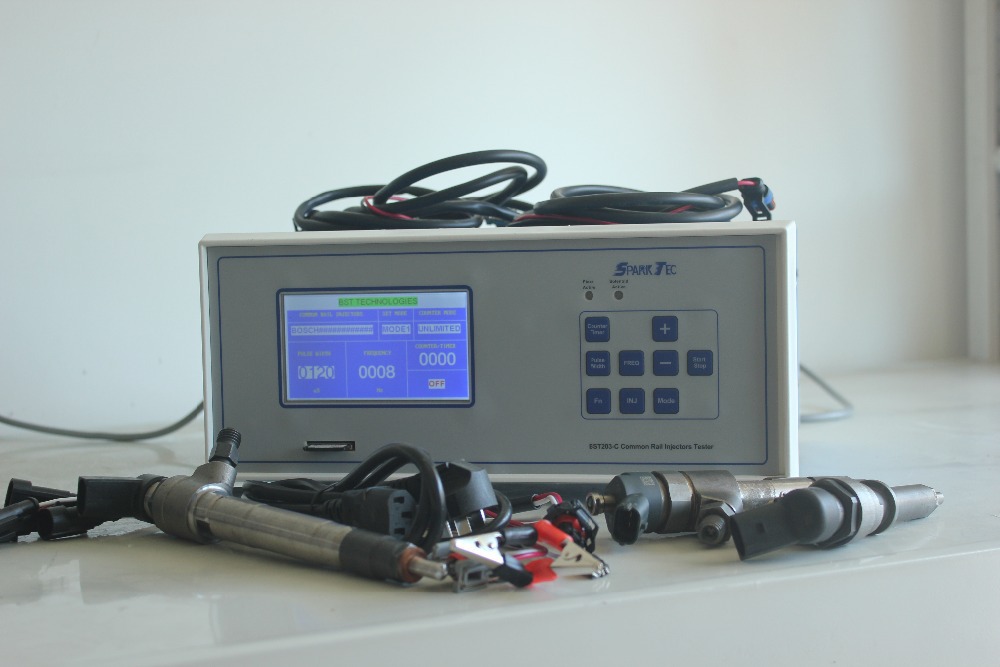

BST203-C piezo and electromagnetic common rail injector tester
Supporting all common rail injectors testing including piezo type and electromagnetic type.
Introduction of BST203-C piezo and electromagnetic common rail injector tester:
1. BST203-C can test common rail injectors including:
denso electromagnetic common rail injectors
bosch electromagnetic common rail injectors
delphi electromagnetic common rail injectors
bosch piezo common rail injectors
delphi piezo common rail injectors
siemens piezo common rail injectors
continential piezo common rail injectors.
2. BST203-C can test common rail injectors quality, injectors openning, injectors atomization and injectors work.
3. BST203-C uses big LCD color screen
4. BST203-C uses SD card. With the new technology of BST203-C tester, if customer does not insert SD card into tester, BST203-C tester can work normally too.
The testing software and data is in SD card and machine. We can input customer’s logo and contacting information in the software. Once technologies of common rail injectors would develop, customers can update data by SD card.
5. BST203-C has 4 basic testing models.
Customers can adjust frequency and width pulse based on the 4 testing models.
Model 1: width pulse 0120 uS, frequency 0008 Hz
Model 2: width pulse 0800 uS, frequency 0008 Hz
Model 3: width pulse 0700 uS, frequency 0020 Hz
Model 4: width pulse 0300 uS, frequency 0060 Hz
6. BST203-C can be set counter and injection time
BST203-C has counter/time button on the key button.
If customers need to set injection time when testing, they can touch counter/time button to set time, and then touch + or – button to increase or decrease injection time.
If customers need to set count, they can touch counter/time button again to set count, and then touch + or – button to increase or decrease count of injection.
If customers do not need to set count and injection time, they can test injectors under limited count.
7. BST203-C designs two connectors.
3pin connector is used to connect with piezo injectors, 2pin connector is used to connect with electromagnetic common rail injectors.
8. Customers can adjust frequency or width pulse to test common rail injectors
Customers touch buton of INJ to select model of injector, touch button of MODEL to select basic testing model, touch button of COUNTER/TIME to set injection time or count, and then touch START/STOP button to start to test injector, and select to increase or decrease frequency or width pulse during testing.
9. BST203-C can work with nozzle tester to test atomization of injection
10. BST203-C can work with ultrasonic bath to clean injectors.
11. BST203-C can start injection, test high pressure of injection of all kinds of injectors.
12. BST203-C can adjust driving signal of frequency or width pulse of injection conveniently, has driving signal wave from that completely consistent of ECU. Product has passed electromagnetic and piezoelectric compatibility test like high and low temperature, static shock, probability of failure very low.
13. BST203-C has protection of short circuit, provide driving signal transfer line of all kinds of injectors.
14. BST203-C has two indicator lights, one is for piezo, another one is for electromagnetic injectors.
It is easy for customers to judge problem of injectors according to flash of indicator light.
15. BST203-C is a high voltage product.
Please do not take apart of BST203-C, and please use it carefully.
16. Parameters of BST203-C
Weight of BST203-C: 6kg/set
Size of BST203-C: 14*32.5*28.5CM
Weight of BST203-C after packing: 7.5kg/set
Size of packing box: 37*31*23CM
17. We supply operation manual in English, Russian, Spanish, French or Portuguese and CD of operation video with product.
Pictures explanaition of introduction of BST203-C piezo and electromagnetic common rail injector tester
1. BST203-C can test common rail injectors including
2. BST203-C uses LCD color screen
3. BST203-C uses SD card
4. BST203-C has 4 basic testing models
5. BST203-C can be set injection count and time
6. Customers can adjust frequency or width pulse
7. BST203-C has two connectors
8. All connecting wires
9. Operation manuals.
Tel: 0086 18519505535
WhatsApp: 0086 18519505535
Please trust to select BST203 series common rail injector tester, especially BST203-C new research piezo and electromagnetic common rail injector tester.
You will be satisifed with this product and our service from BST manufacturer.
